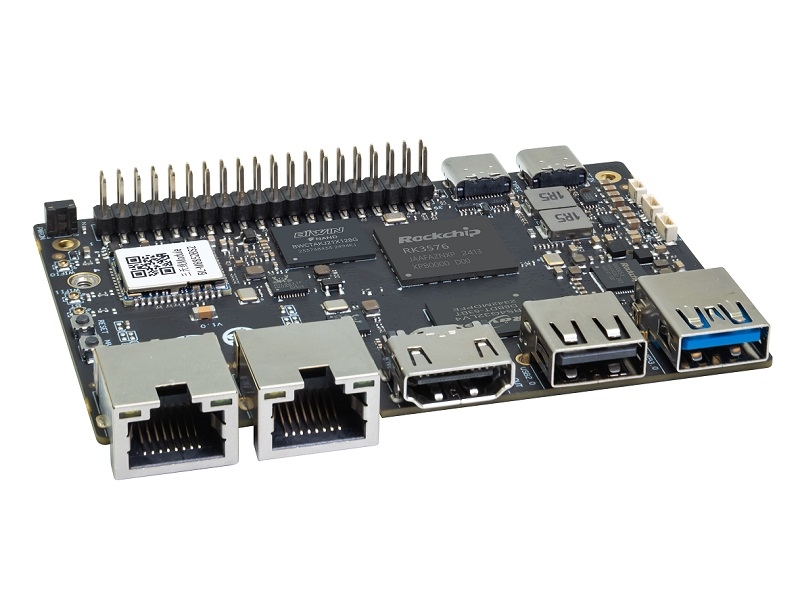

Banana Pi BPI-M5 Pro with Rockchip RK3576, max support 16G RAM and 128G eMMC

SoC: Rockchip RK3576
CPU: Integrated with four Cortex-A72 cores @ 2.2GHz and four Cortex-A53 cores @ 1.8GHz, along with a separate NEON co-processor.
GPU: ARM Mali G52 MC3 GPU
NPU: Up to 6 TOPs computing power (INT8), supports INT4/INT8/INT16 mixed operations.
VPU/Encoding & Decoding
RAM: 8/16GB 32-bit LPDDR4x, default is 8GB. RK3576 supports a maximum of 16GB.
Flash: 32/64/128GB eMMC, default is 64GB eMMC.
PDF
    Banana Pi BPI-M5 Pro adopts the second-generation 8nm high-performance AIOT platform Rockchip RK3576, with a 6 TOPS computing power NPU and support for up to 32GB of large memory. It supports 8K video encoding and decoding, offers rich interfaces including dual gigabit Ethernet ports, WiFi 6 & BT5, and various video outputs. Compatible with multiple operating systems, it is suitable for ARM-based PCs, edge computing devices, personal mobile internet devices, and other digital multimedia applications.



    Key Parameter：
    * SoC: Rockchip RK3576
    * CPU: Integrated with four Cortex-A72 cores @ 2.2GHz and four Cortex-A53 cores @ 1.8GHz, along with a separate NEON co-processor.
    * GPU: ARM Mali G52 MC3 GPU
    * NPU: Up to 6 TOPs computing power (INT8), supports INT4/INT8/INT16 mixed operations.
    * VPU/Encoding & Decoding:
    * Hardware Decoding: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K@30fps or 4K@120fps.
    * Hardware Encoding: Supports H.264 and H.265 up to 4K@60fps, high-quality JPEG encoder/decoder supports up to 4K@60fps.
    * RAM: 8/16GB 32-bit LPDDR4x, default is 16GB. RK3576 supports a maximum of 16GB.
    * Flash: 32/128GB eMMC, default is 128GB eMMC.
    * Operating Systems:Official Rockchip Support: Android 14, Debian 11, Buildroot;Third-party Support: Armbian

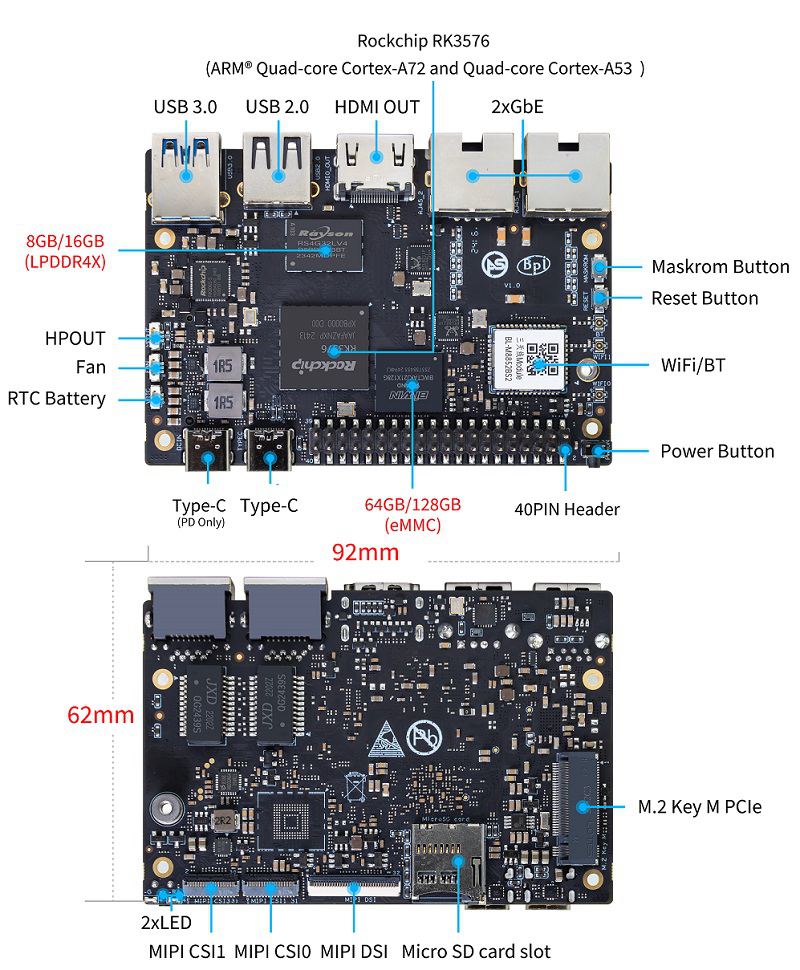

    Hardware interface:


    Hardware spec:
    HardWare Specification of Banana Pi BPI-M5 Pro

    Category

    Functional Parameters

    SOC

    RockChip RK3576

    CPU

    RK3576 Quad-core Cortex-A72@ 2.2GHz and Quad-core Cortex-A53@ 1.8GHz, 8nm process

    GPU

    ARM Mali G52 MC3 GPU

    Fully compatible with OpenGL ES 1.1, 2.0 and 3.2, OpenCL up to 2.0 and Vulkan 1.1

    Dedicated 2D hardware engine with MMU will maximize Improves display performance and provides very smooth operation.

    NPU

    6 TOPS@INT8

    Supports INT4, INT8, INT16, FP16, BF16 and TF32 hybrid operations

    Supports deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch , Onnx NNAndroid NN, etc.

    VPU/Codec

    video decoder supports H.264, H.265, VP9, AV1 and AVS2 etc. up to 8K@30fps or4K@120fps

    video encoder supports H.264 and H.265 up to 4K@60fps, high-qualityJPEG encoder/decoder supports up to 4K@60fps

    ISP

    1 channel ISP, 16 million pixels

    RAM

    8GB/16GB（max 16GB ）64bit LPDDR4/LPDDR4x，default 16GB LPDDR4x

    Flash

    32GB/128GB eMMC，default 128GB eMMC

    Supports MicroSD card expansion

    PCIe

    1x M.2 Key M interface (PCIe 2.0, 1-lane), expandable SSD: Type 2280/2260/2242/2230, currently defaulting to 2280

    Network

    2x Gigabit Ethernet port

    Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (rtl8852bs)

    Video Output

    1x HDMI OUT2.1, supports 4K@120fps

    1x MIPI DSI, maximum resolution up to 2K@60fps

    1x DP1.4, maximum resolution up to 4K@120fps

    Video In

    2x 2-lane MIPI CSI, up to 2.5Gbps per lane

    Audio

    1x HDMI audio output

    1x HP-OUT audio output

    USB Ports

    2x USB2.0, supports High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) modes

    1x USB Type-C 2.0, supports OTG, supports high-speed (480Mbps), full-speed (12Mbps) and low-speed (1.5Mbps) modes

    40-pin

    Compatible with Raspberry Pi 40-pin GPIO, supports various accessory peripherals

    Supports UART/SPI/I2C/I2S/PWM/5V Power/3.3V Power

    Other

    1x 5V fan interface

    1x battery connector for low power RTC chip LK8563S

    2x LEDs - green LED blinks on system start, red LED user controllable

    Power Input

    USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A

    Buttons

    1x PWRON button for sleep/wake

    1x Reset button for reboot

    1x Maskrom button for maskrom burn-in mode

    OS Support

    Official：Android 14.0，Debian11，Buildroot

    3rd Party：Armbian

    Dimensions

    92 mm x 62mm

    Operating temperature

    0℃ ~ 80℃
    More please see online development documents: https://docs.banana-pi.org/en/BPI-M5/BananaPi_BPI-M5_Pro
