Mini PC/Industrial control

BPI-3A6000 Mini PC with Loongson 4th-generation 3A6000 processor + Loongson 7A2000 bridge chip

Using the fourth generation of Loongson 3A6000 CPU+7A2000 bridge
Supports two DDR4 SODIMM slots
Supports memory rates up to 3200Mbps
Supports multiple CPU cores, up to 4 physical cores and 8 logical cores
The volume of the whole machine is less than 1L, which is 40 times smaller than the desktop
Small size, easy to carry, easy to organize, one hand
Can support wall hanging, can be hung behind the monitor/TV series, save desktop space
PDF

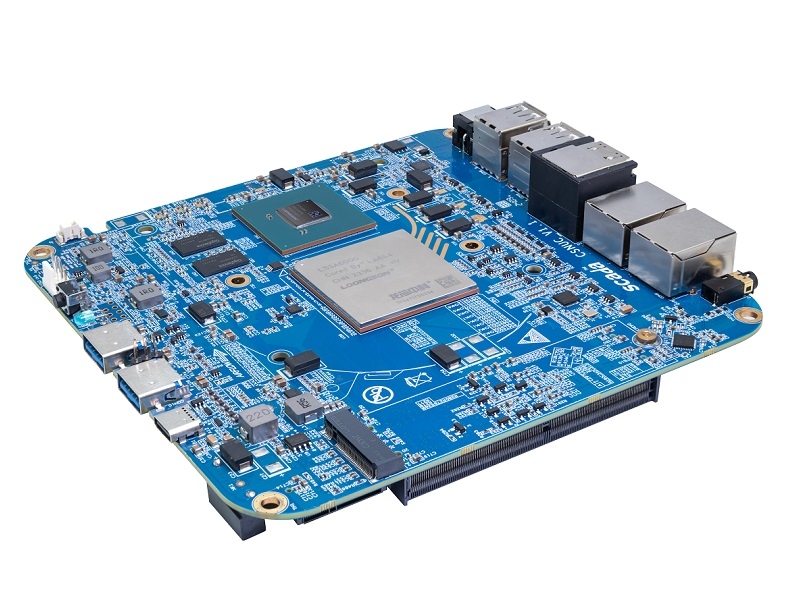

    BPI-3A6000 is a Mini PC developed by Banana Pi open source community and Loongson, with Loongson 4th-generation 3A6000 processor + Loongson 7A2000 bridge chip.
    BPI-3A6000 can be applied to enterprise office, personal minicomputs, high-performance industrial computer, as well as education, medical, finance, edge computing and other fields. It has the advantages of high performance computing, portability, low energy consumption and easy management. The Loongson BPI-3A6000 MINIPC supports two DDR4 SODIMM slots, the memory rate is 3200M, a single memory supports 8GB/16GB/32GB, and the maximum memory capacity is 32GB. Storage Supports one M.2 2280-size NVME SSD slot and one 2.5-inch SATA disk expansion.
    BPI-3A6000 Longson minicomputeruses mini case design, unique high density heat dissipation structure design, high performance, high density and high reliability in one; It is easy to move and saves space when it meets various application scenarios.

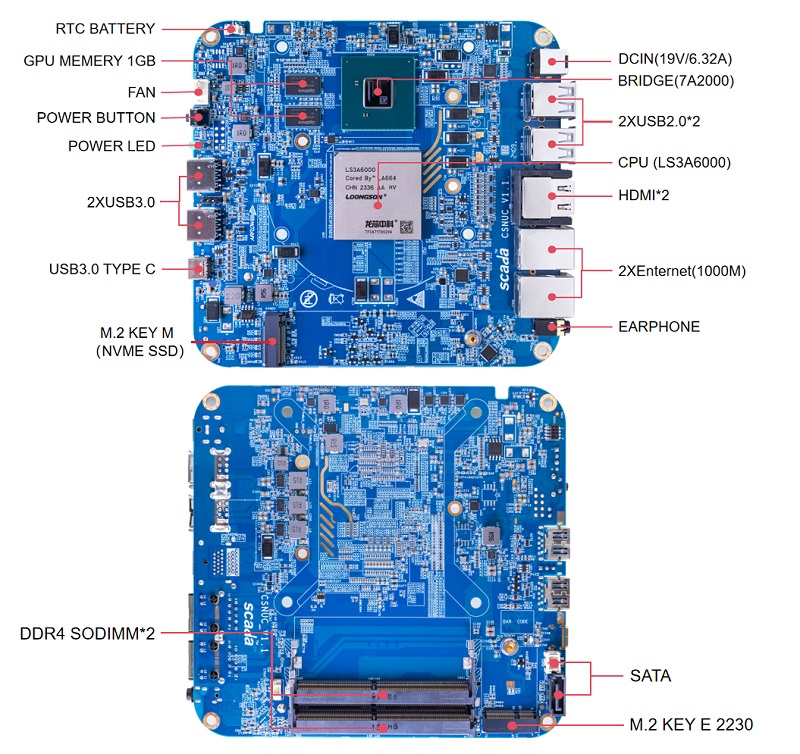

    Hardware interface:





    Hardware Spec:


    Type

    Specifications

    CPU

    the fourth generation of Loongson 3A6000 4-core 8-thread processor, 2.0-2.5GHz

    Large capacity Level 3 cache (64KB/256KB/16MB)

    RAM

    2 x memory slots

    Supports the DDR4 3200 memory rate

    Maxs support 32GB memory

    only support SODIMM

    Flash

    support 1 个 M.2 2280 NVMe SSD (PCIE3.0 x4 )

    Display

    2 x HDMI display interface，Built-in bridge GPU，1GB video memory，maximum resolution 1920x1080

    WIfi

    support dual-band wireless WiFi 5G/2.4G，support 802.11AC

    support Bluetooth 5.0（RTL8822CE wireless network card does not support Bluetooth）

    External interface

    2 x USB 3.0

    1 x TypeC PD，Support data transmission and external power supply (PD3.0 fast charge protocol)

    4 x USB2.0

    2 x HDMI

    2 x RJ-45 Gigabit network

    1 x 3.5mm Headphone/microphone audio

    Reserved debugging interface

    1 x TTL level UART debugging interface，2.54mm

    1 x LA-JTAG interface，Mainly used for CPU debugging

    Size

    156mm x 154mm x 42 mm(长 x 宽 x 高)

    Power Supply

    Maximum power consumption: no more than 80W

    Adapter spec：DC19V 3.42A， 5.5/2.5mm

    cooling system

    1 x special custom cooling module

    operating system

    Loongnix/UOS/Kylin OS；

    Operating system support is subject to change without notice

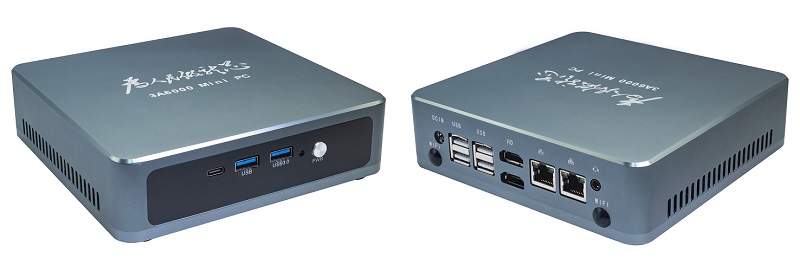

    we also design a official case for BPI-3A6000.



    Welcome for OEM&ODM.

    More please see online wiki page: https://docs.banana-pi.org/en/BPI-3A6000/BananaPi_BPI-3A6000
