Banana Pi BPI-CanMV-K230D-Zero IoT SBC design with Canaan K230D RISC-V chip

Canaan K230D RISC-V chip
128 RAM
Dual camera
MIPI CSI srceen
Wifi onboard
40 Pin GPIO
ADC audio
PDF

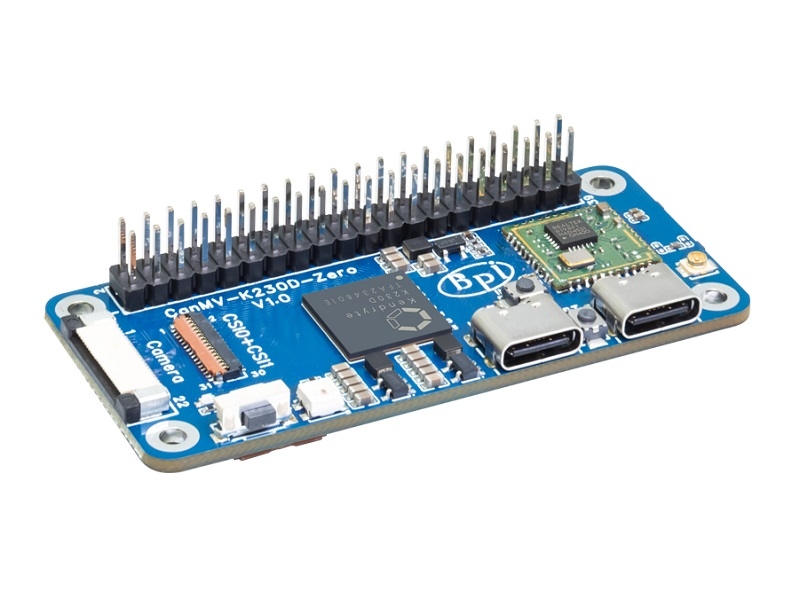

    Banana Pi BPI-CanMV-K230D-Zero AIoT SBC design with Canaan K230D RISC-V chip.This board is designed be Canaan Technology and Banana Pi open source hardware community,
    Featuring with the advanced Kendryte K230D chip. The K230D chip boasts a dual-core XuanTie C908 RISC-V CPU and integrates a self-developed third-generation KPU, with 128MB of LPDDR4 memory, providing high-performance local AI inference computing support. The Canmv K230D Zero is designed to support a variety of DIY projects, AIoT devices, and embedded systems, with its rich development resources and compact size making it one of the most competitive development boards on the market. Whether for learning programming, innovating AI audio and video products, or performance evaluation, the Canmv K230D Zero helps you embark on a journey of innovation.
    About Canaan K230D：
    The latest generation SoC chip in Kanaan’s Kendryte® series AIoT chips. The chip adopts a new multi-heterogeneous cell accelerated computing architecture, integrates two RISC-V energy-efficient computing cores, built-in a new generation of Knowledge Process Unit (KPU) intelligent computing unit, with multi-precision AI computing power, widely supports the general AI computing framework, and the utilization rate of some typical networks exceeds 70%.
    The chip also has a variety of peripheral interfaces, as well as 2D, 2.5D and other scalar, vector, graphics and other dedicated hardware acceleration units, can be a variety of images, video, audio, AI and other diverse computing tasks for the whole process of computing acceleration, with low latency, high performance, low power consumption, fast start, high security and many other features.

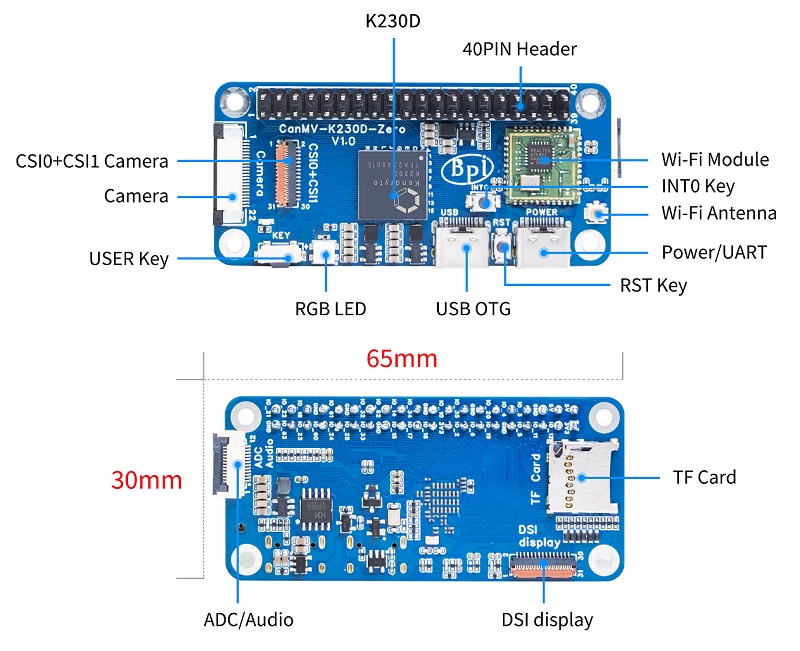

    Hardware inerface:


    Hardware spec:

    HardWare Specification of Banana Pi BPI-M7

    Parameter

    Description

    CPU

    XuanTie C908 dual-core RISC-V CPU;

    CPU1: 1.6GHz, supports RVV1.0;

    CPU2: 800MHz

    KPU

    Third-generation KPU, supports various data types such as INT8/INT16; Typical network performance: Restnet50 >= 85fp@INT8，Mobilenet_V2>=670fps@INT8; YoloV5s >= 38fps@INT8

    DPU

    Built-in 3D structured light depth engine, maximum up to 1920*1080

    VPU

    Built-in H.264/H.265 hardware encoder/decoder

    Video Input

    2 lane MIPI-CSI * 1 + 4 lane MIPI-CSI * 1; Maximun resolution up to 4K

    Display Out

    MIPI DSI interface, support up to 1080P display

    RAM

    128MB LPDDR4@2666Mbps

    Storage

    Onboard TF card expansion interface, supports up to 1TB

    USB

    1 channel USB 2.0 interface, supports OTG function

    Network

    2.4G Wi-Fi

    Audio

    Onboard microphone * 1

    GPIO

    40Pin expandable GPIO; supports I2C/UART/I2S/SPI/PWM/ADC/JTAG expansion conversion

    Butttons

    Function button * 1; Reset button * 1

    Power Supply

    USB Type-C 5V@2A

    Dimensions

    Length: 65mm Width: 30mm Height: 7mm

    Online Wiki documents : https://docs.banana-pi.org/en/BPI-CanMV-K230D/BananaPi_BPI-CanMV-K230D-Zero
