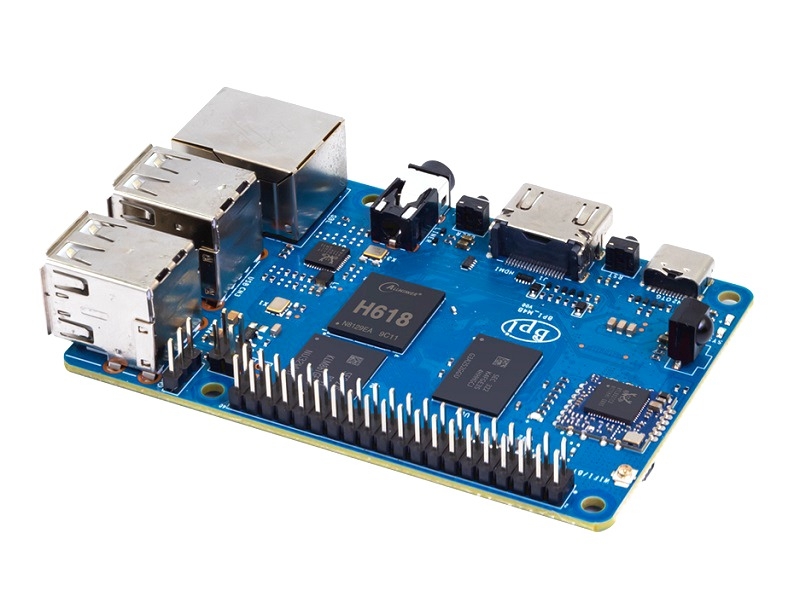

Banana Pi BPI-M4 Berry development board stands as a powerful Single Board Computer (SBC), harnessing the capabilities of the Allwinner H618 System-on-Chip (SoC) to provide developers with impressive performance and a wealth of features. Similar to the Raspberry Pi 4b, the BPI-M4 Berry boasts comparable CPU prowess, LPDDR4 memory support, integrated WiFi and Bluetooth functionalities, and a familiar 40-pin header layout, alongside 4 USB interfaces and a GbE RJ45 port.

Characterized by its robust performance, versatile features, and remarkable image processing capabilities, stands as an exemplary SBC development platform for professionals within the embedded and computing industries. Equipped with 8GB eMMC flash storage, high-performance decoding and encoding capabilities, and an array of interface options, it caters to a wide spectrum of application domains, including media processing, IoT, and entertainment. Whether catering to novices or seasoned developers, the BPI-M4 Berry development board offers an ideal toolset for realizing creative visions and project objectives.

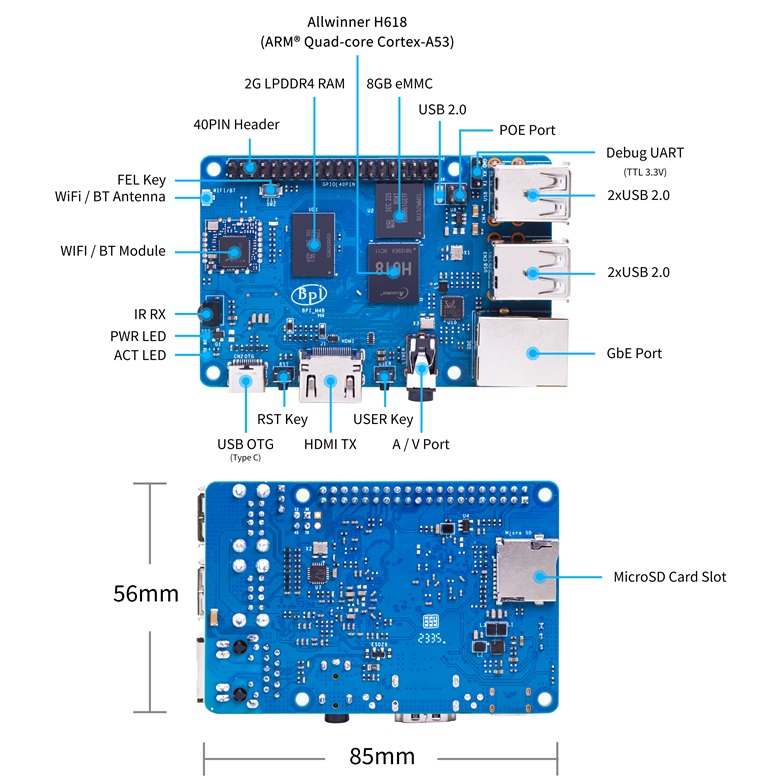

Hardware interface:


hardware sprc:

Hardware Specification of Banana pi BPI-M4 Berry
CPU	Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
GPU	ARM Mali G31 GPU
Memory	2 GB LPDDR4
Storage	8G eMMC flash
SD card	MicroSD card slot
Wireless	2.4G/5G WiFi and Bluetooth 4.2
Ethernet	1x GbE Ethernet port(supports PoE with add-on PoE HAT)
HDMI	1x full-size HDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
Audio	1x 3.5mm Audio & TVE jack socket
IR	1x CIR
USB	4x USB2.0 Type-A HOST, 1x USB2.0 Type-C OTG
GPIO	40-pin header, 28 pins GPIO and Power (+5V, +3.3V and GND)
	UART, SPI, TWI/I²C, PWM, PCM/I²S
Buttons	Reset, FEL and User
LED	Power Status and Activity status
Power	5V@3A via USB Type-C
Size	85x56 mm
Weight	60g

Hardware introduction video:



Online Wiki development documents: https://docs.banana-pi.org/en/BPI-M4_Berry/BananaPi_BPI-M4_Berry
