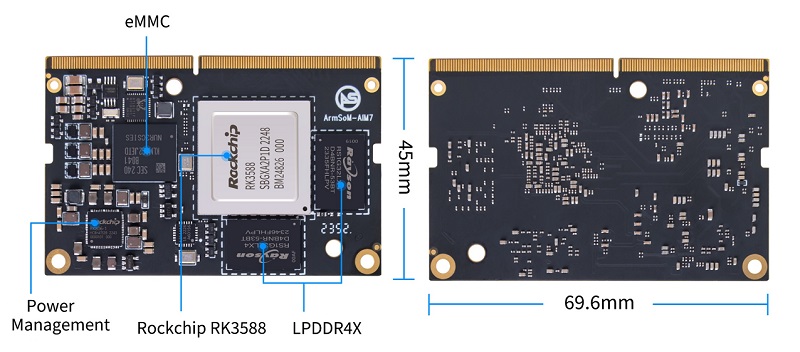

Key Features:
* SOC: Rockchip RK3588
* CPU: RK3588 quad-core Cortex-A76 @ 2.4GHz + quad-core Cortex-A55 @ 1.8GHz, 8nm process
* GPU: ARM Mali-G610 MP4
* NPU: Computing power up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing
* VPU/Codec:
* * Hardware decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
* * Hardware encoding: 8K@30fps H.265 / H.264
* RAM: 8GB/16GB/32GB (max 32GB) 64bit LPDDR4x, default LPDDR4x 8GB
* Flash: 32GB/64GB/128GB eMMC, default eMMC 32GB
* Interface type: 260pin SO-DIMM connector, compatible with Jetson TX2 NX
* Working voltage: 5V DC
* Temperature: Operating temperature: 0°C to 80°C, Storage temperature: -20°C to 85°C
* Humidity: Relative humidity: Operation: 10% to 90%, Storage: 5% to 95%
* operating system:
* * Rockchip official support: Android 12.0, Debian11, Buildroot
* * Third-party support: Armbian 23.07, Ubuntu 20.04, Ubuntu22.04, Kylin OS
* PCB: 12-layer PCB board design
* Size: 69.6 mm x 45 mm
BPI-AIM Hardware inerface:

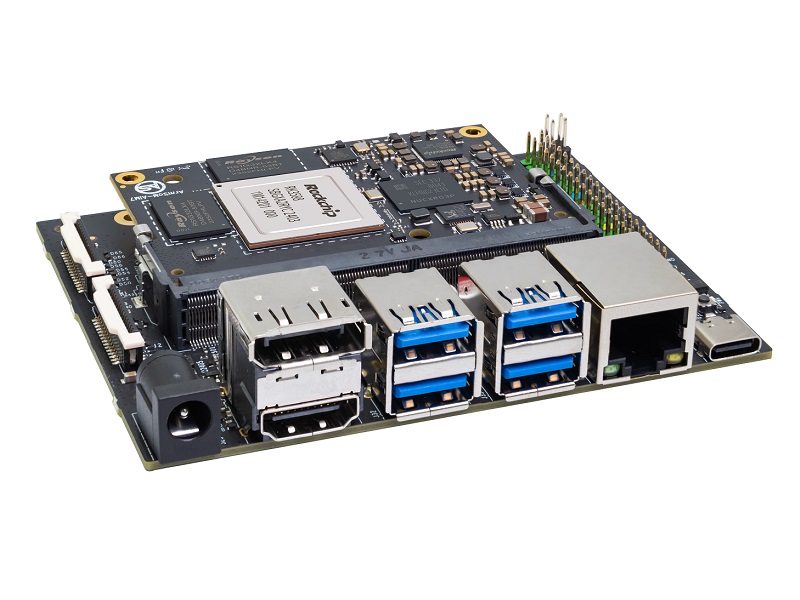

BPI-AIM7 developemnt Kit:

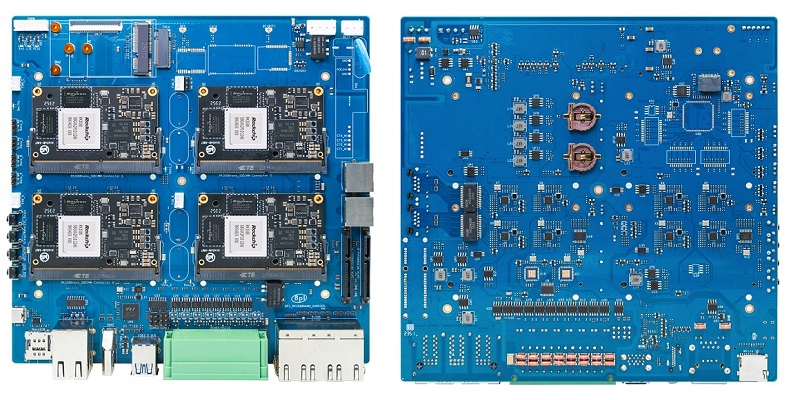

BPI-AIM7 for Edge computing gateway design:
Online development documents: https://docs.banana-pi.org/en/BPI-AIM7/BananaPi_BPI-AIM7
BPI-AIM Hardware inerface:
BPI-AIM7 developemnt Kit:
BPI-AIM7 for Edge computing gateway design:
Online development documents: https://docs.banana-pi.org/en/BPI-AIM7/BananaPi_BPI-AIM7
