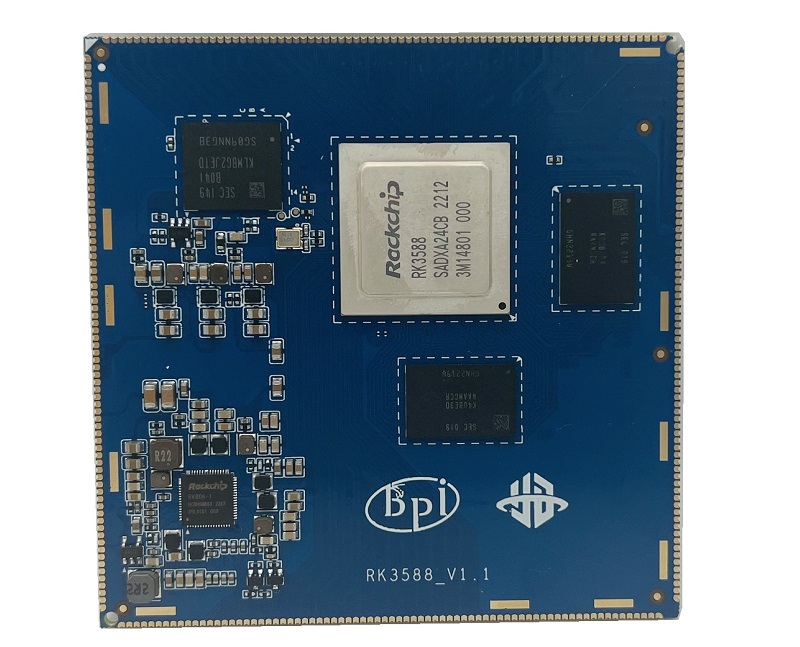

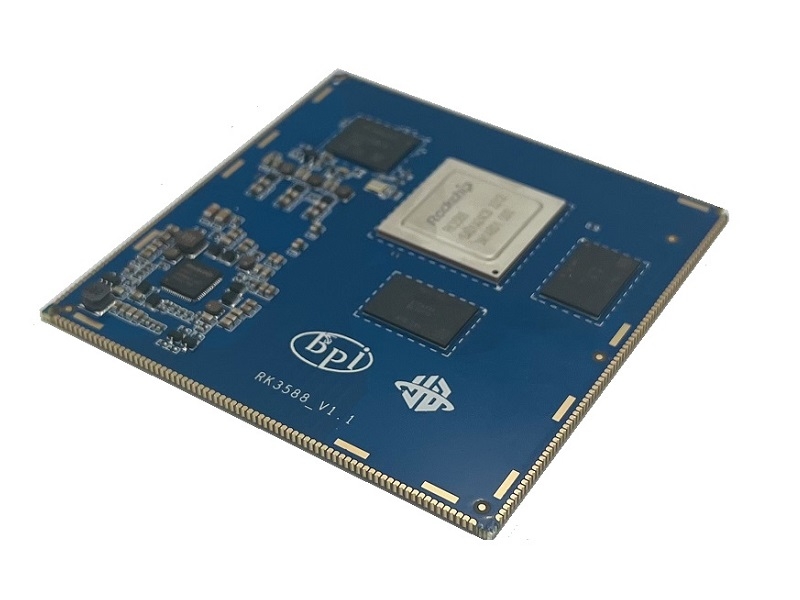

Banana Pi BPI-RK3588 Stamp hole Core board adopts Rockchip RK3588 design, adopts core board + baseboard development board suite, supports 8G memory,32G eMMC storage, supports 32G maximum memory and 128G maximum EMMC storage, can be convenient for all kinds of development and flexible base plate customization quickly mass production of products

RK3588 is a new generation of flagship high-end processor launched by SWMC. It adopts 8nm process design and is equipped with eight-core CPU of quad core A76+ quad core A55, Arm high-performance GPU, and built-in NPU with 6T computing power. Have strong visual processing ability, can support structure light, TOF and other fast face unlock schemes; Support rich display interface, up to 8K display processing capacity; With strong expansibility, support PCI 3.0, SATA3.0, double TypeC/USB3.1 and other high-speed interfaces, can do AI computing power, image data processing and other expansion. Apply to ARMPC, high-end tablet, edge computing server, VIRTUAL reality, NVR, 8K TV, etc.The most important is pCI-E and SATA USB3.1 these IO are complete

Main spec:

SoC	RockChip RK3588
CPU	quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
GPU	ARM Mali-G610 MP4,support OpenGL ES 1.1/2.0/3.2，OpenCL 2.2，Vulkan 1.1 Embedded high-performance 2D acceleration hardware
NPU	6Tops@INT8 ，
Video decode	Caffe/TensorFlow/TFLite/ONNX PyTorch/Keras/Darknet mainstream architecture model of a key transformation VPU support 8 k 60 FPS h. 265 / AVS2 Profile0 / VP9 video decoding
Video encode	Supports 8K 30FPS H.265/H.264 video encoding
RAM	support 4GB / 8GB LPDDR4C
eMMC flash	support 32GB / 64GB / 128GB eMMC
System	Android 12.0 ,Linux support
Power	current and voltage 12V/2A
operating temperature	0℃ ～ 80℃（Measurement can reach -20 degrees to 85 degrees）

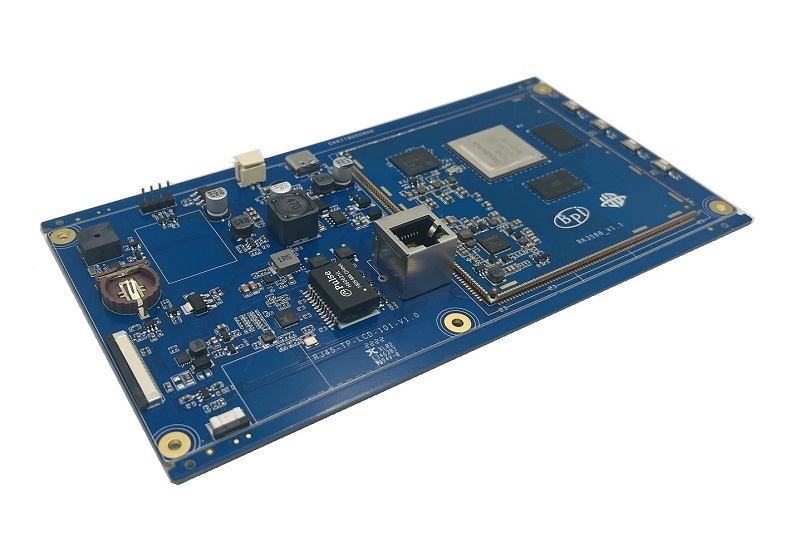

BPI-RK3588 Development Kit (Core board + baseboard)：

The  Stamp hole core board gold hand pin interface led to the RK3588 all IO definition, can support RK3588 all definition interface, can be easily modified to support the application you want. Flexible customization

Online wiki documents :https://wiki.banana-pi.org/BPI-RK3588_Core_board_and_development_Kit

Banana Pi open source community complete the full Industrial grade and Automotive grade verificationthe base on Rockchip RK3588M/3588J, And completed mass production.
