BananaPi BPI-M2S new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash, also support Amlogic S922x chip

Banana Pi BPI-M2S use Amlogic A311D 12nm process low power, high performance processor suitable for computing, personal mobile Internet devices and other smart device applications. It is based on the Big/Little architecture and integrates the dual-core Cortex-A73 and quad-core Cortex-A53 with an example 5.0T NPU processor. The A311D motherboard program using the chip, compared with the common four-core program in the market, has a qualitative leap in performance, can play various formats of HD video HDMI can output 4K*2K/60 frames of video, can deal with complex interactive operations such as deep learning.

BPI-M2S same size as Banana Pi BPI-M2+ and Banana Pi BPI-M2 Pro

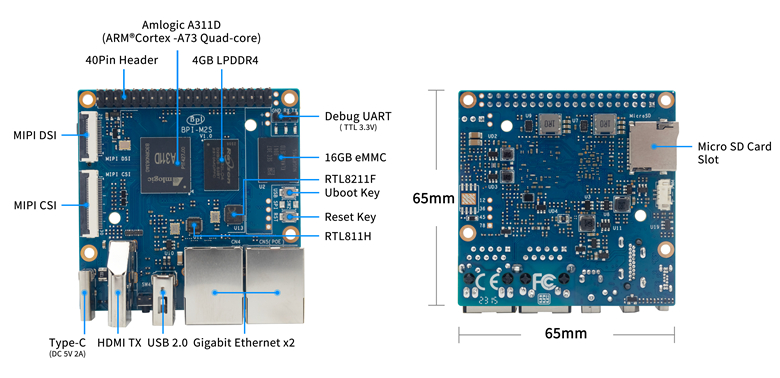

BPI-M2S(Amlogic A311D) Hardware interface:

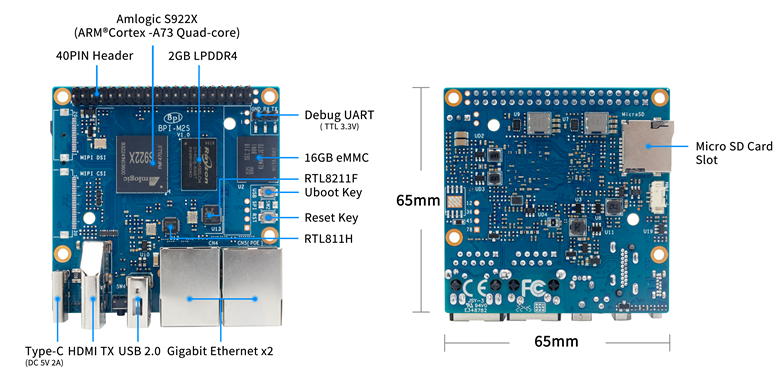

BPI-M2S(Amlogic S922X) Hardware interface:



Key Features：
* Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU

* NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS

* 4GB LPDDR4 RAM

* 16GB eMMC flash (Max 128G)

* support MIPI DSI Camera interface

* support MIPI CSI Screen interface

* 2 Gigabit port

* HDMI output

* 40 PIN GPIO

* support Android and Linux system.

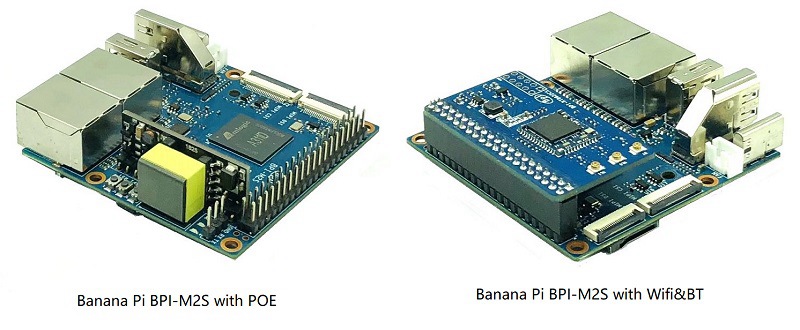

Support PoE module  and WiFI&BT module onboard
、
Banana PI BPI-M2S Amlogic A311D / S922X



BPI-M2S wiki online documents: https://docs.banana-pi.org/en/BPI-M2_Super/BananaPi_BPI-M2_Super
