Smart Router

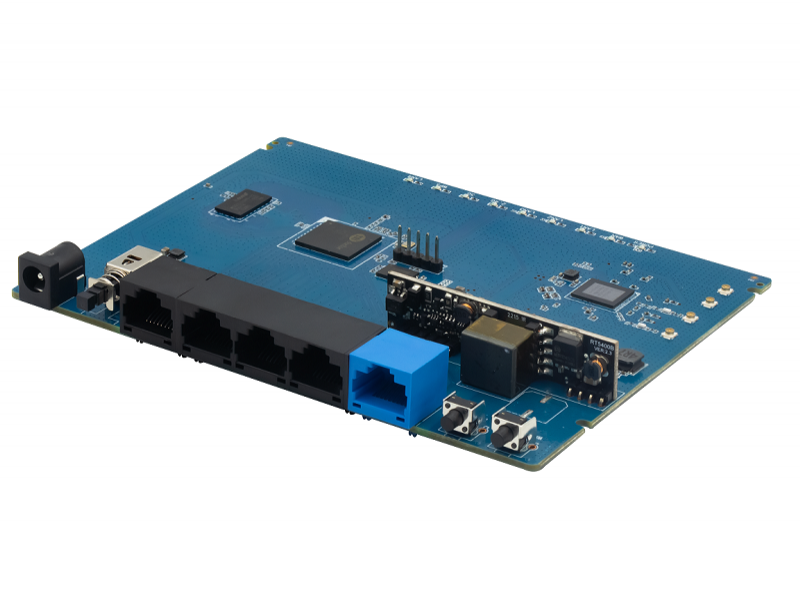

Banana Pi BPI-Wifi6 Router with Triductor TR6560 + TR5220 wifi SOC

  • Dual core ARM CorteX A9 1.2G Hz
  • Integrated 5GE PHY
  • Supports 4 GE MACs,1000M/100M/10M rate mode and standard MIB statistics
  • Supports IEEE802.11a/b/g/n/ac/ax wireless LAN communication protocol
  • Support Wifi AP mode and STA mode
  • Support WPA,WPA2, WPA3 encryption and decryption, pay Chinese WAPI standard
  • PoE function support
    Banana Pi BPI-Wifi6 Router design with Triductor TR6560 + TR5220 wifi SOC, it is a standard wifi6 router solution. Built-in high-performance dual-core ARM Cortec A9 processor for WIFI message forwarding or intelligent business processing, built-in high-performance LSW and hardware NAT, supporting up to 5Gbps message forwarding,Integrated 5GE PHY, provides 1000Mbps network access capability, and supports two WAN ports. Support hardware intelligent QoS. Support dual-band 2.4G 40M 2*2 +5G160M2.2 DBDC WIFI,Wifi protocol version support to IEEE 802.11ax, backward compatible 802.11a /b/g/n/ac, can support the highest rate of 3Gbps, 2G will reach 573.5Mbps, while 5G will reach 2401.9Mbps, support PoE interface ,add PoE module to support PoE function.

    Key Features
    • Dual core ARM cortec A9 1.2G Hz
    • Integrated 5GE PHY
    • Supports 6 GE MACs,1000M/100M/10M rate mode and standard MIB statistics
    • Supports IEEE802.11a/b/g/n/ac/ax wireless LAN communication protocol
    • Support Wifi AP mode and STA mode
    • Support WPA,WPA2, WPA3 encryption and decryption, pay Chinese WAPI standard
    • PoE function support

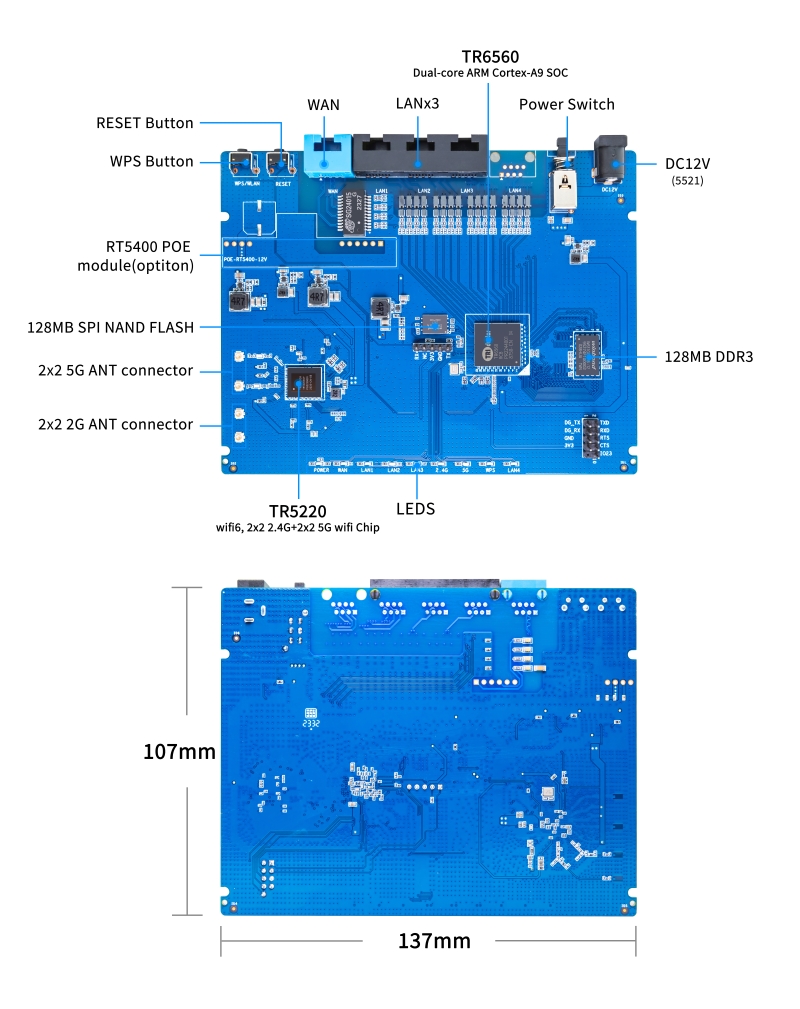

    Hardware interface:

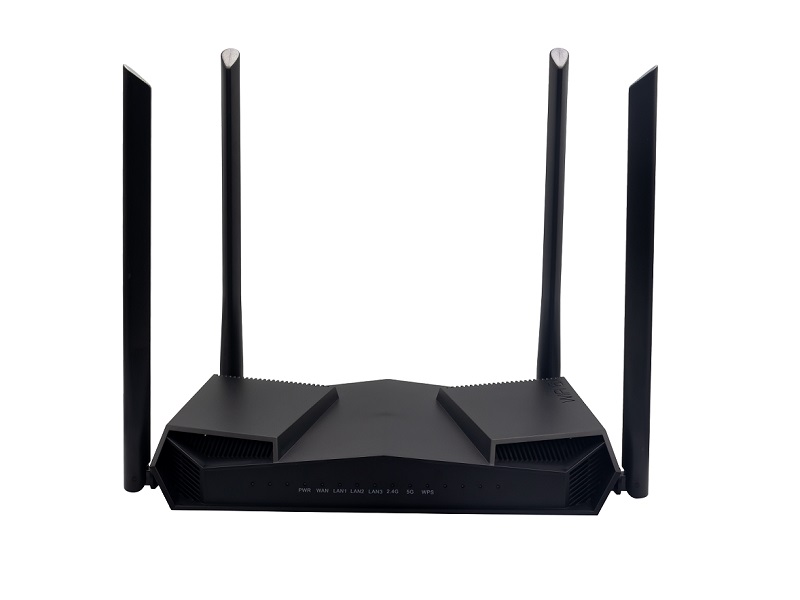

    Appearance design:



    This board support customized service. You can quickly produce your own wifi6 router products. And develop your own software on it

    online documents: https://docs.banana-pi.org/en/BPI-WiFi6_Router/BananaPi_BPI-WiFi6_Router


    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
