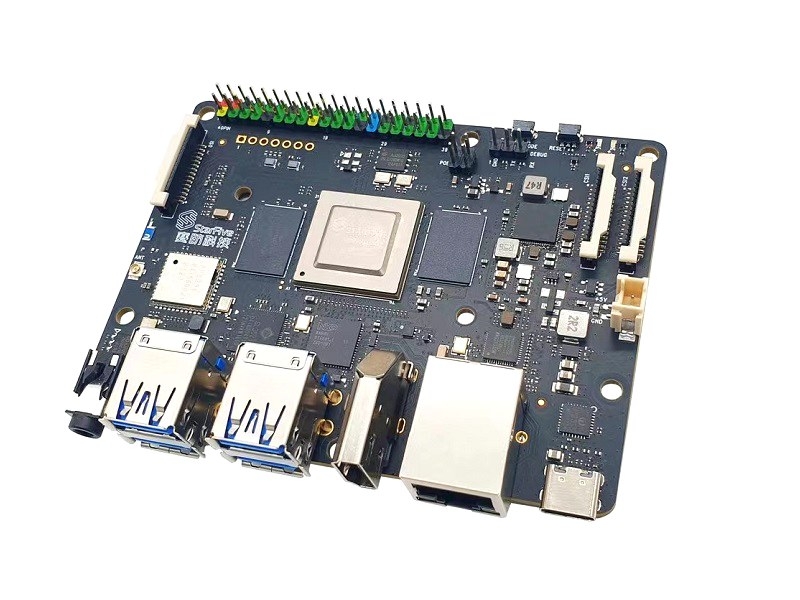

StarFive VisionFive JH7100 RISC-V Single Board Computer

Open-source hardware, software and RISC-V open architecture
RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC with 2MB L2 cache @ 1.0GHz
Vision DSP Tensilica-VP6 for computing vision @ 600MHz
NVDLA Engine (configuration 2048 MACs @ 800MHz)
Neural Network Engine (1024MACs @ 500MHz)
Wireless connectivity with Wi-Fi and BLE
Onboard video and audio processing
Wide software compatibility including support for Fedora
4 x USB 3.0 ports
40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
Gigabit Ethernet Connector
3.5 mm Audio jack (4-pole stereo audio output)
Micro-SD card slot for system boot and data storage
Support TRNG and OTP
Support DMAC, QSPI and other peripheral
PDF

    StarFive VisionFive JH7100 is world‘s first generation of affordable RISC-V boards designed to run Linux. Based on RISC-V architecture, VisionFive pushes open-source to the next level and gives developers more freedom and power to innovate and design industry-leading solutions. This is not an official development board for the Banana Pi community, but the Banana Pi open Source community and StarFive work closely together to advance risC-V open source hardware.

    VisionFive is the first generation of affordable RISC-V computers designed to run Linux. It is fully open-source with open-source software, open hardware design and RISC-V open architecture.It is powered by RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC with 4GB/8GB LPDDR4 RAM variants and has rich I/O peripherals such as USB 3.0 ports, 40-pin GPIO header, Gigabit Ethernet Connector, Micro-SD card slot and much more.VisionFive also has rich AI features with Neural Network Engine and NVDLA Engine. It has onboard audio and video processing capabilities and has MIPI-CSI and MIPI-DSI connectors for video hardware. It has wireless capabilities with Wi-Fi and Bluetooth (BLE) and has a wide software compatibility including support for Fedora.

    Features:
    1. Truly open-source hardware, software and RISC-V open architecture
    2. Powerful and rich AI features with Neural Network Engine and NVDLA Engine
    3. Abundant I/O peripherals
    4. Wireless connectivity with Wi-Fi and BLE
    5. Onboard video and audio processing
    6. Wide software compatibility including support for Fedora linux

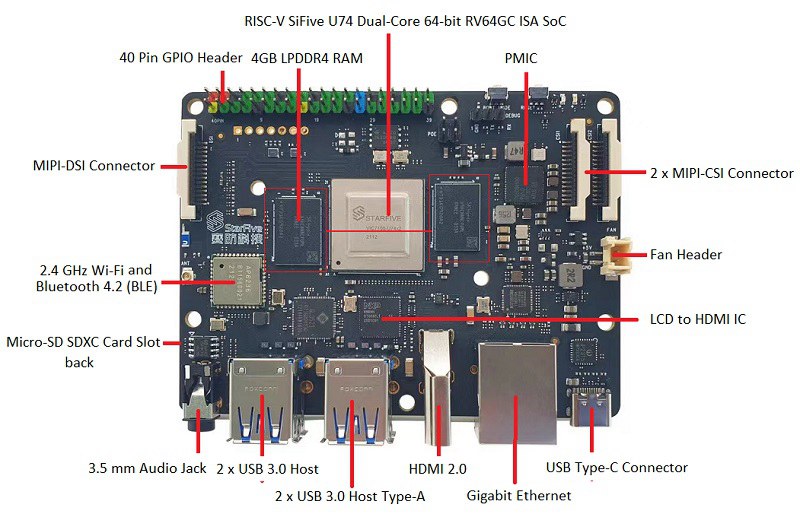

    Hardware interface:


    VisionFive JH7100 Specifications：
    Processor

    RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC with 2MB L2 cache @ 1.0GHz
    Vision DSP Tensilica-VP6 for computing vision @ 600MHz
    NVDLA Engine (configuration 2048 MACs @ 800MHz)
    Neural Network Engine (1024MACs @ 500MHz)
    Memory 4GB LPDDR4 / 8GB LPDDR4
    Wireless Connectivity

    2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
    Bluetooth 4.2 (BLE)
    Video Processing

    2 x MIPI-CSI (up to 4K@30fps), 1 x MIPI-DSI (up to 4K@30fps)
    1 x HDMI 1.4 (up to 1080p@60fps display)
    Video Decoder (H264/H265) up to 4K@60fps; Support Dual stream decoding for 2K@30fps each
    Dual channels of ISP, each channel support up to 4K@30FPS
    Support MIPI-CSI TX for video output after ISP and AI processing
    JPEG encoder/decoder
    Dedicated Audio Processing DSP and Sub-system

    Ultra-low power Voice Activity Detector for audio bit-stream as a Voice Trigger
    On-chip Audio DAC
    Support DMIC and AMIC, up to 4 channels
    Peripherals

    4 x USB 3.0 ports
    40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
    Gigabit Ethernet Connector
    3.5 mm Audio jack (4-pole stereo audio output)
    Micro-SD card slot for system boot and data storage
    Support TRNG and OTP
    Support DMAC, QSPI and other peripheral
    Reset button and Power Button
    Power Supply

    Minimum: 5 V / 1.5 A Recommended: 5 V / 3 A
    Power Connector USB Type-C port or 40-pin GPIO header
    Dimensions 100 mm x 72 mm

    StarFive VisionFive JH7100 Wiki online documents

    Easy to buy sample from Banana Pi official Aliexpress shop
