You are here：Home >> products >> Core board and Kit...

Core board and Kit

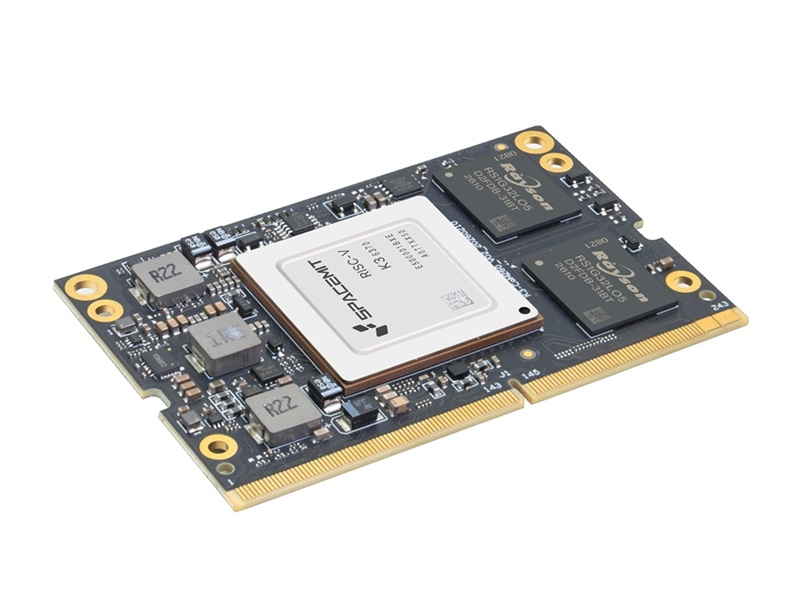

Banana Pi BPI-SM10 AI compute module with SpactmiT K3 RISC-V chip

8x X100™ 64-bit RISC-V CPU cores
4-issue out-of-order pipeline,12 stages.Compliant with the RVA23 specification.
Shared 8MB L2 cache
8 x A100™ 64-bit AI CPU cores
60 TOPS general-purpose Al compute
1024-bit RW 1.0 vector processing width
Shared 2MB L2+3 MB TCM
64-bit LPDDR5, 6400 MT/s
Support for external NVMe storage devices
PDF
    Banana Pi BPI-SM10 (K3-CoM260) delivers up to 60 TOPS of general-purpose AI compute and can smoothly run 30-billion-parameter(30B) large models such as the 30B-A3B series. It offers highly accessible, user-friendly development environment for developers , students and makers.
    The developer kit includes a BPI-SM10 Core module and universal reference carrier board. The carrier board is fully compatible with K3-CoM260 series and provides ready-to-use demos for edge AI agent development.
    The BPI-SM10 (K3-CoM260) module integrates 8x100™ general-purpose CPU cores and 8x A100m Al CPU cores, delivering 130 KDMlPS of general compute and 60 TOPS of general Al compute Real-world testing shows inference performance is greater than 10 Tokens/S@30B. It supports multi-pipeline concurrent Al workloads and high-performance inference tasks. And the included carrier board offers a wide range of I/O interfaces while remaining hardware-compatible with NVIDIA Jetson Orin Nano to simplify hardware migration.
    The BPI-SM10 (K3-CoM260) Developer Kit supports deployment of a broad set of Al algorithms and model types It follows a standard CPU programming model and provides system software, Al runtime, and a complete developer toolchain, enabling zero-effort migration of existing Al workloads.

    Banana Pi also provides custom software development services, along with support for camera and sensor integration, carrier-board design, and full system engineering to accelerate  productization
    As the world’s first compact edge-computing platform based on the RISC-V architecture with full RVA23 support, the SpacemiT K3-CoM260 Developer Kit is idea for Al edge devices, service robots, and a wide range of autonomous on-device Al agent applications

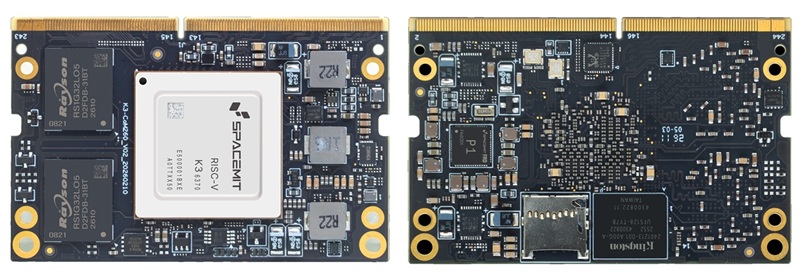

    Core board specification:

    Chip

    SpacemiT K3 RISC-V AI CPU

    CPU

    8x X100™ 64-bit RISC-V CPU cores, 2.4GHz

    2 clusters x 4 cores per cluster, each cluster includes 4 MB shared L2 cache, with cross-cluster access

    Each X100 cores includes 64 KB I-cache and 64 KB D-cache

    Complaint with the RVA23 profile

    Supports RVV 1.0, VLEN:256 bits

    AI performance

    8 x A100™ AI CPU cores, delivering 60 TOS

    2 cluster x 4 cores per cluster, each cluster includes 1 MB shared L2 cache and 1.5MB TCM(Tightly Coupled Memory), with cross-cluster access

    Each A100 core includes 32KB I-cache and 32KB D-cache

    Supports RVV 1.0, VLEN:1024 bits

    GPU

    Integrated 3D GPU, with support for Vulkan, openCL, and openGL ES

    Memory

    8GB/16GB/32GB 64-bit LPDDR5,6400MT/s

    Storage

    supports internal UFS, SD card, and external NVMe

    video Encoding

    4K60 (H.264/H.265)

    video Decoding

    1 x 4K120 (H2.64/H.265/VP9)

    2 x 4K60 (H2.64/H.265/VP9)

    8 x 1080P60 (H2.64/H.265/VP9)

    16 x 1080P30 (H2.64/H.265/VP9)

    Power consumption

    18W-35W

    Carrier Board Specification:

    camera

    2xMIPI CSI-2, 22-pin camera connectors

    PCIe

    M.2 Key M slot (PCIe Gen 3 x 4)

    M.2 key M slot (PCIe Gen 3 x 1)

    M.2 key E slot

    USB

    4 x USB 3.0 Type-A

    1 x USB Type-C(UFP device mode supported)

    Networking

    1 x GbE connector

    Display

    1 x DP 1.2 connector

    1 x MIPI DSI-1.2 30-pin display connector

    Other I/O

    pin expansion header (UART,SPI, I2S, I2C, GPIO)

    pin button header

    pin fan header

    DC power jack

    Mechanical

    103mm x 90.5mm x35mm (Height includes feet, carrier board, module and thermal solution)

    Online Wiki documents : https://docs.banana-pi.org/en/BPI-SM10/BananaPi_BPI-SM10
