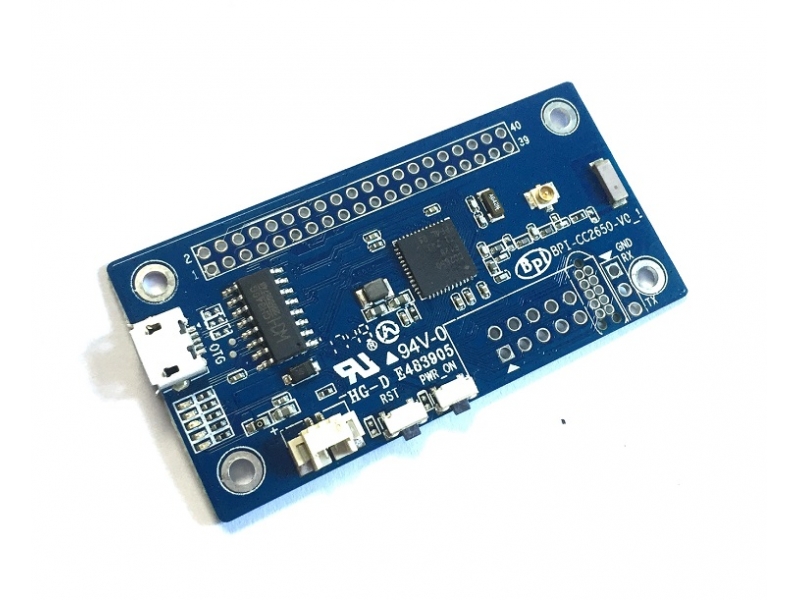

BPI-CC2650 Linaro 96Boars with TI CC2650 chip design developent board ，this is a Linaro 96Board standard development board.The CC2650 device is a wireless MCU for Bluetooth Smart ZigBee and 6LoWPAN, as well as ZigBee RF4CE remote control applications

1.BPI-CC2650 module:

• TI CC2650 chip design with Bluetooth4.2,ZigBee and 6LoWPAN
• TI CC2640 chip design with Bluetooth4.2 and Bluetooth 5
• TI CC2630 6LoWPAN, ZigBee
• Linaro 96Board standard

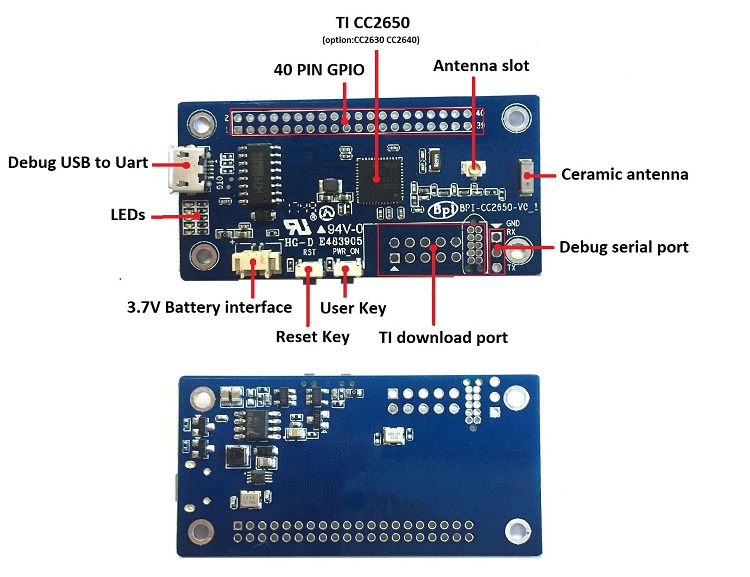

Hardware interface:

Hardware spec:

HardwareSpecification of BPi-CC2650
Soc	TI CC2650 (option:CC2640 CC2630)
CPU	ARM Cortex™-M3 CPU
SDRAM size	20 KB of ultralow-Leakage SRAM, 8KB of SRAM for Cache
Flash size	128KB
Power	5V/2A via MicroUSB / 3.7V via Battery Connector
Low-level peripherals	40 Pins Header 2xSSI，I2C，I2S，UART；All Digital Peripheral Pins Can Be Routed to Any GPIO
On board Network	Zigbee, BT4.2
micro USB	1 micro USB to Uart for debug
Buttons	Reset button, User button
Leds	1 Power status Led and 4 other Leds
Sizes	60mm×30mm
Weight	10g

Online WIki development documents:https://wiki.banana-pi.org/BPI-CC2650_Zigbee_BT_Linaro_96Boars
