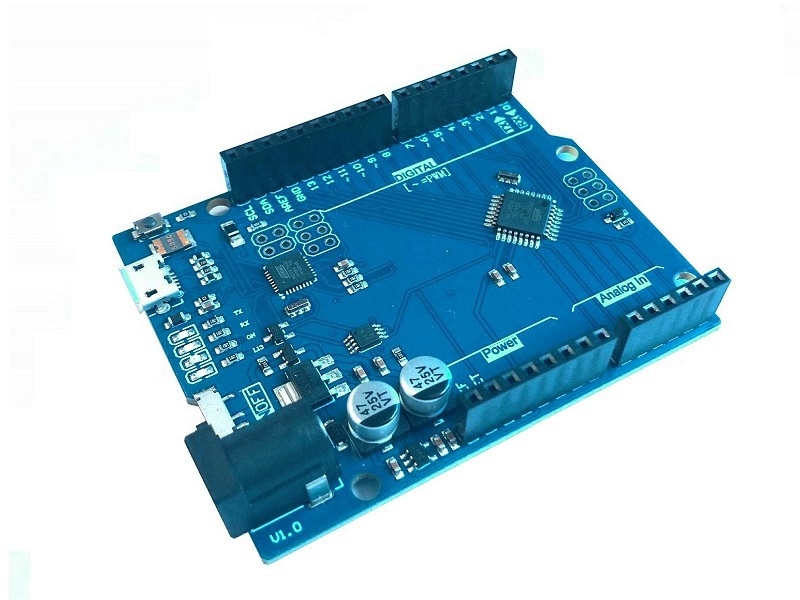

The BPI-UNO Arduino Uno is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.



Main spec：

• ATmega328P @16 MHz.
• 32 KB Flash.
• 2 KB SRAM.
• 1 KB EEPROM

Hardware interface:

Hardware spec:

Banana Pi BP-UNO
Microcontroller	ATmega328P
Operating Voltage	5V
Input Voltage: (recommended)	7-12V
Input Voltage: (limits)	6-20V
Digital I/O Pins	14(include 6 PWM output)
PWM PIN	6个
Analog Input Pins	6个
I/O output Max	20mA
3.3V output Max	50mA
Flash	32KB(ATmega328P) and 0.5KB used by bootloader
SRAM	2KB(ATmega328P)
EEPROM	1KB(ATmega328P)
Clock Speed	16MHz
onboard LED	13
size	same as arduino NANO

Online Wiki documents: https://wiki.banana-pi.org/BPI-UNO_arduino_UNO_board
